S43-RS485

£16.99 ex. tax

  • RS485 interface for SGD 43-A
  • Supports ASCII and MODBUS RTU
  • Optional 120Ω termination
  • Simple rear mounting installation
SGD 43-RS485 | RS485 Interface | Display Screen | Add-On | Display Solutions | Solo
S43-RS485 £16.99 ex. tax

Use this option if you require more than 20 pieces.

Questions? Request a Call Back

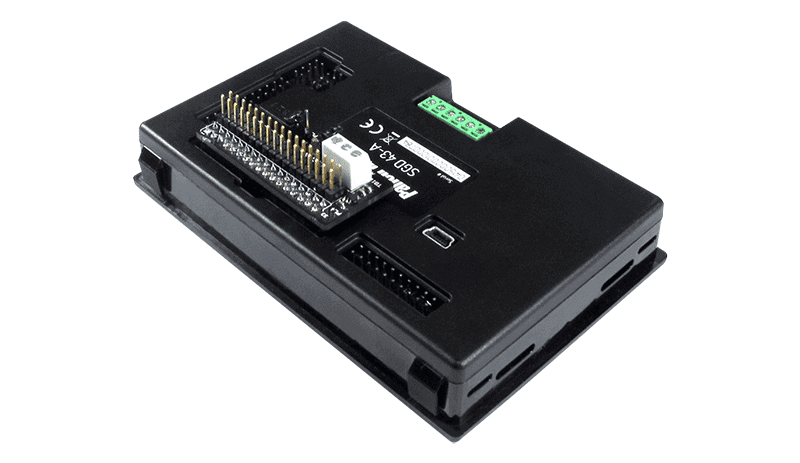

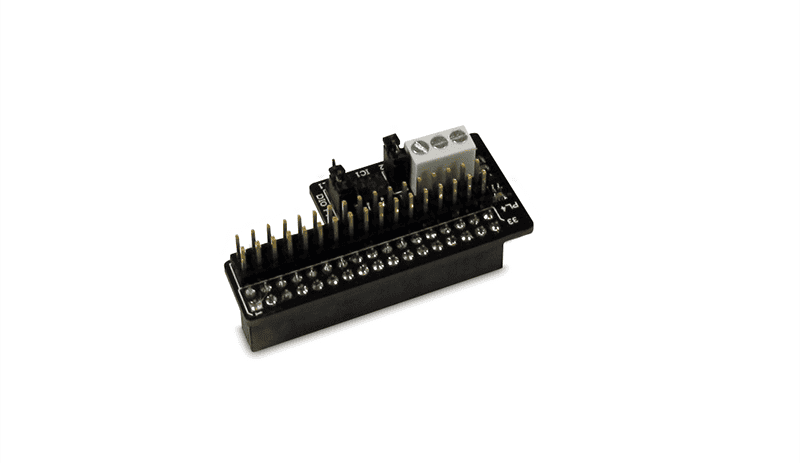

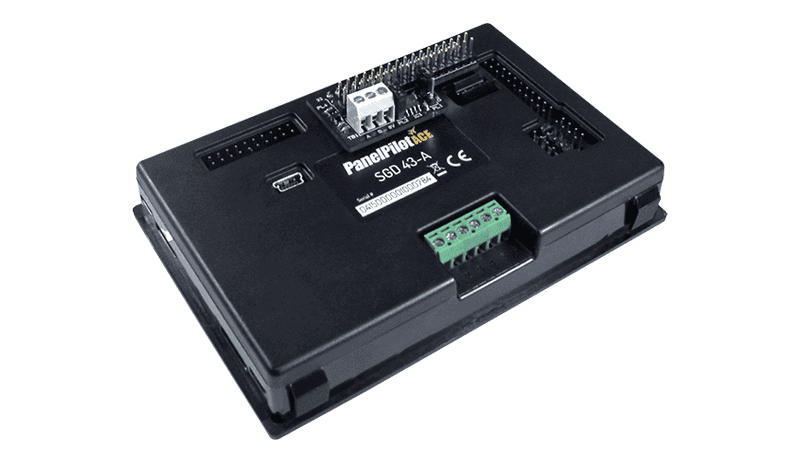

RS485 interface board for the 4.3” PanelPilotACE display. Adds half duplex RS485 serial communication and optional termination resistor. Supports ASCII and MODBUS RTU protocols via PanelPilotACE Design Studio. Quick to fit with minimal configuration needed.

Receiver Output High Voltage Vcc-0.6 (4.4V)
Receiver Output Low Voltage 0.17 Typical (0.4 Maximum)
Input Current (V = 12V) 80uA Typical (125uA Maximum)
Input Current (V=-7V) 50uA Typical (-100uA Minimum)
Max Data Rate 20Mbps
A/B Voltage Absolute Maximum -8V – +13V
Operating Temperature Range 0 to 40°C
  • PanelPilotACE
